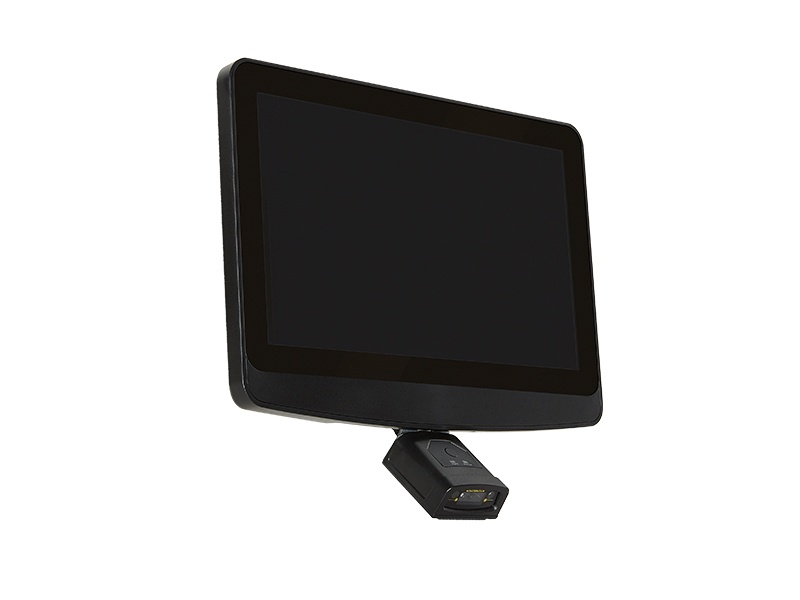

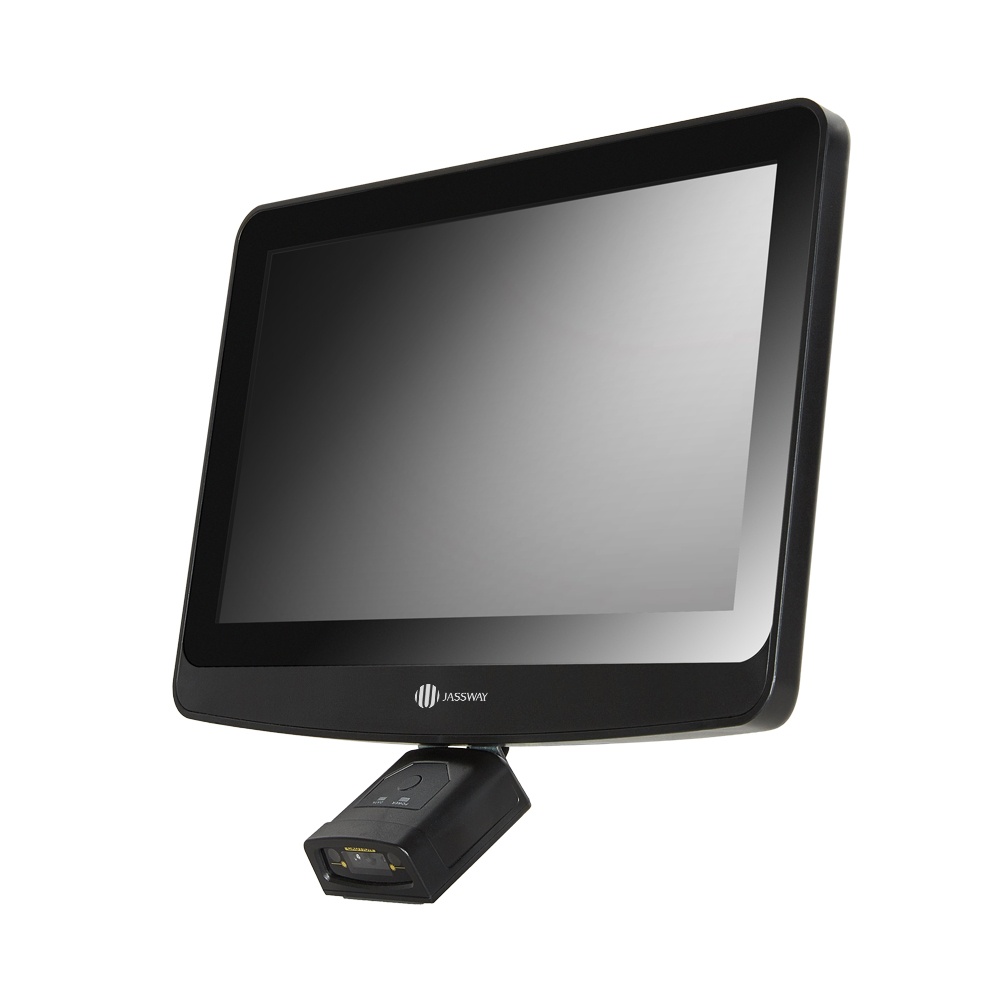

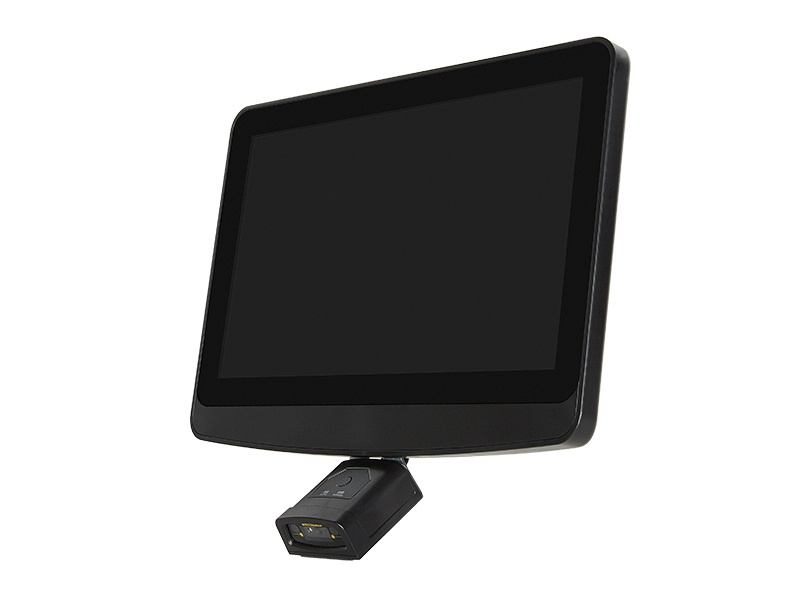

JAW-K102L
11.6 inch price checker
Function introduction
- Low price, easy installation and maintenance
- Save time and manpower, convenient and quick
- Suitable for many different scenarios
- Fast scanning speed and accurate information reading
- Can be used with other equipments
Features
• 11.6 inch Android based price checker for supermarket self-service.
• Low price, easy installation and maintenance, saving time and manpower.
• Fast scanning speed and accurate information reading.
• Can be used with other equipments, suitable for many different scenarios.
• Compact design with wall mount VESA 75*75mm bracket option.
OS
Android 11
CPU
Rockchip RK3568, Quad-core
Memory
4GB ROM + 32GB RAM
Main Display
11.6 inch TFT LCD
Scanner
1D, 2D
Wifi
Mini PCIe for Wireless LAN (Factory Option)
Interface
1*VGA, 3*USB2.0, 1*COM (RS232), 1*Gigabit Ethernet
Speaker
2*3W speakers
Technical Specifications
| Features | Details |
|---|---|
| SYSTEM | |
| Processor | Rockchip RK3568, Quad-core Cortex-A55 up to 2.0GHz |
| Memory | 4GB |
| Storage | 32GB Flash |
| OS | Android 11 |
| DISPLAY | |
| Type | 11.6'' TFT LCD |
| Resolution | 1366*768 |
| Brightness | 250 cd/m2 |
| Viewing Angle(CR≥10) | 140 Degree(H) , 130 Degree(V) |
| Touchscreen | Projective Capacitive Touch Screen |
| INTERFACE | |
| Cash Drawer | 1*RJ11 |
| USB | 2*USB2.0, 1*Micro USB |
| LAN | 1*Gigabit Ehernet, RJ45 |
| Serial | 1*COM(RS232) |
| Power DC-IN | Input AC 100~240V/50~60hz, Output DC12V/5A |
| SCANNER | |
| Supported Symbologies | 1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISSN/ISBN, Interleaved 2 of 5, ITF-6, ITF-4, Codebar, Matrix 2 of 5, Industrial 25, Standard 25, MSI-Plessey, Code 39, Code 93, Code 11, Plessey, GS1-DataBar™ (RSS) (RSS-14, RSS-Limited, RSS-Expand) 2D: PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, 050, ECC000, 080, 100, 140), Hanxin |
| PHYSICAL & ENVIRONMENTAL | |
| Operating Temperature | Operating 0~60° |
| Storage Temperature | Storage -35°~75° |
| Dimensions(W×H×D) | 300x200x700(MM) |
| Packing Dimensions(W×H×D) | 430x410x150(MM) |
| Net Weight | 2.5KG |
| Packing Weight | 3.0KG |
| Color | Black |
| BUILT-IN FUNCTIONS | |
| Wifi | Mini PCIe for Wireless LAN (Factory Option) |
| Speaker | 2*3W speakers |
| Wall Mount | VESA 75*75mm bracket |
