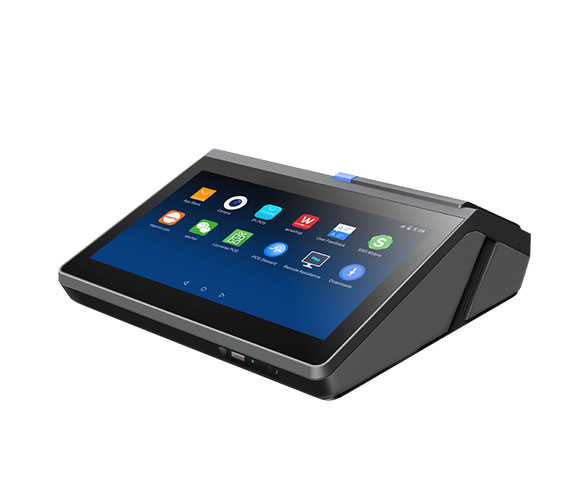

OLP116A
11.6inch Android 11 with Printer, 2D Scanner, NFC, Battery, 2nd Display
Function introduction
- All-in-one pos terminal with artistic appearance.
- Refined & easy installation design.
- 11.6 inch wide angle HD/FHD display.
- 80mm Seiko printer with auto cutter.
- 4.3 inch LCD/VFD presents all-round payment information.
Olimpia comes with a compact horizontal body covered by elegant black and blue, which caters to customers store's aesthetic style. 11.6 inch wide angle HD display and a 4.3 inch LCD customer display facilitate the use of staff and customers.
Hardware Design
Wide Angle HD display
Enhances software operating experience and delivers awesomely visual image.
3 inch Seiko Printer
Supports label paper roll and thermal paper roll with auto cutter.
4.3 inch 2nd Display / VFD
The important parts for Customer information interaction, presenting all-round payment information.
Multiple Payment Methods
One device, two payment methods. It supports payment made with NFC member Card or 2D mobile payment scanning.
OS
Android 11
CPU
Rockchip RK3568 / RK3288
Memory
2GB / 4GB RAM DDR3
Main Display
11.6" HD Display
2nd Display
4.3" LCD Option
Wifi
802.11 a/b/g/n/ac
Bluetooth
Bluetooth 4.0
prod_spec_speaker
1*0.8W Speaker
Technical Specifications
| Features | Details |
|---|---|
| SYSTEM | |
| Model Number | OLP116A |
| Processor | Rockchip RK3568 / RK3288 Quad-Core Cortex A17 up to 1.8GHz |
| Memory | 2GB Standard, 4GB Option |
| Storage | 16GB Standard, 32GB Option |
| OS | Android 11 |
| DISPLAY | |
| Type | 11.6 inch HD Display |
| Resolution | Standard 1366*768, 1920*1080 Option |
| Aspect Ratio | 16:9 |
| Brightness | 250 nits |
| Touchscreen | Projective Capacitive Touch Screen |
| PRINTER | |
| Printer Mechanism | Seiko Thermal Printer Mechanism with Auto Cutter |
| Printing Method | Direct Thermal |
| Printing Speed | 200mm/s |
| Paper Width | 79.5 ± 0.5mm |
| Paper Roll Diameter | 60mm |
| INTERFACE | |
| USB | 5* USB |
| LAN | 1*RJ45 |
| VGA | 2*VGA |
| Audio | 1*Line Out, 1*Mic In |
| Serial | 1*COM(RS232) |
| Cash Drawer | 1*RJ11 |
| Power DC-IN | Input AC 100~240V/50~60hz, Output DC 12V/5A |
| PHYSICAL & ENVIRONMENTAL | |
| Operating Temperature | Operating 0~50°, Storage -20°~60° |
| Dimensions(W×H×D) | 292x100x297 MM |
| Net Weight | 2.35KG |
| Color | Black |
| OPTIONS & PERIPHERALS | |
| 2nd Display | 4.3 inch LCD Display Option (Resolution: 800*400) |
| Customer Display | VFD Customer Display Option, 20 Characters*2 Line |
| Scanner | Embedded Scanner Option, Support 1D, 2D |
| Card Reader | NFC Option |
| Wifi & Bluetooth | IEEE 802.11 a/b/g/n/ac / BT 4.0 Option |
| 4G module | Support 4G TD-LTE, FDD-LTE (factory option) |
| Battery | Internal Battery Option |
