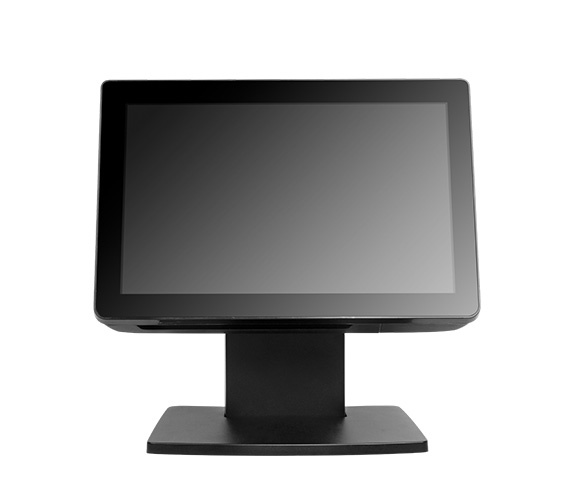

MINOS MIN101W
10.1" Mini Desktop Windows POS
The MINOS POS series features a modern and contemporary design in a compact footprint. With reliable Windows performance, a rich I/O interface for vast peripheral support, and flexible installation methods, it's perfect for space-constrained checkout environments.
Function introduction
- Compact 10.1'' Display:Crisp 1280x800 IPS screen with a 160° viewing angle.
- Flexible Mounting:Standard VESA 75*75mm allows mounting anywhere and everywhere.
- Rich Connectivity:Multiple USB, HDMI, VGA, and Network ports packed into a tiny chassis.
- Windows Core:Powered by the Intel Celeron J1900 Quad-Core processor.
Miniature Footprint, Maximum Windows Utility
The MINOS MIN101W redefines desktop POS by squeezing enterprise-grade connectivity and a full Windows OS into an incredibly small 10.1" form factor.
Space-Saving Design
Perfect for pop-up shops, small counters, and kiosks. Its minimalistic desktop stand keeps your workspace tidy without sacrificing capability.
Complete Connectivity
Despite its size, the MINOS features 4x USB ports, VGA, HDMI, and Gigabit Ethernet, making it a capable hub for Windows-compatible peripherals.
Vivid IPS Touch Screen
The 10.1" projective capacitive touch display features a 1280x800 resolution and a 160-degree viewing angle, ensuring crystal-clear visibility from any position.
OS
Windows 10
CPU
Intel Celeron J1900
Memory
Up to 8GB RAM DDR3
Main Display
10.1" IPS Capacitive
Technical Specifications
| Features | Details |
|---|---|
| SYSTEM | |
| Model Number | MIN101W |
| Processor | Intel Celeron J1900 Quad Core Processor |
| Memory | 2GB Standard, DDR3, (up to 8GB) |
| Storage | mSata SSD 32GB Standard (64GB/128GB/256GB Options) |
| OS | Windows 7, Windows 8.1, Windows 10, POS Ready7 |
| DISPLAY | |
| Main Display | 10.1 inch IPS Display |
| Resolution | 1280*800 |
| Viewing Angle | 160°(H) ; 160°(V) (CR≥10) |
| Touchscreen | Projective Capacitive Touch Screen |
| INTERFACE | |
| USB | 3*USB2.0, 1*USB3.0 |
| Display Output | 1*VGA, 1*HDMI |
| LAN | 1*RJ45 Gigabit Ethernet |
| Audio | 1*Line-out, 1*Mic-in |
| Power Supply | Input AC 100~240V/50~60hz, Output DC12V/5A |
| PHYSICAL & ENVIRONMENTAL | |
| Operating Temperature | Operating -20°~70° |
| Storage Temperature | Storage -25°~75° |
| Dimensions(W×H×D) | 251x288x49(mm) |
| OPTIONS & PERIPHERALS | |
| Network / Connectivity | Mini PCIe for Wireless LAN(Option) Bluetooth 4.0(Option) |
| Mounting | VESA 75*75mm standard |
