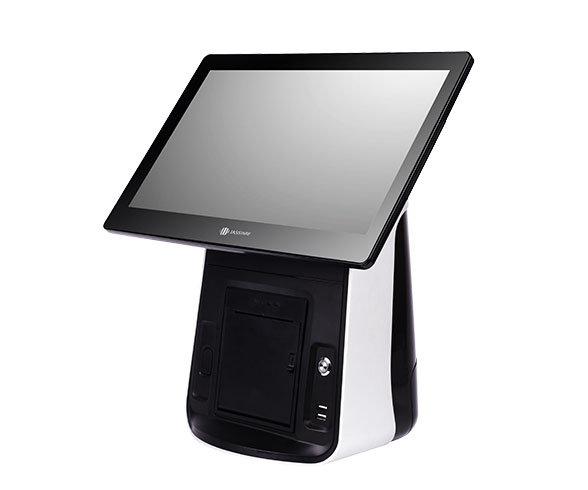

Helios
15.6inch Android 11 with 80mm Printer
Function introduction
Revolutionary multi-platform ALL in One terminal designed, developed and created with an integrated thermal printer and panoramic touch screen measuring 15.6'.
- Built-in 80mm/58mm thermal printer (factory option)
- 15.6" Bezel-Free True-Flat Projective Capacitive Touch
- Optional 15.6" LCD Customer Display
- Powerful Rockchip RK3568 / RK3399 Processor
Designed for Modern Retail & Hospitality
Jassway Android POS series features modern and contemporary styling and powerful performance. Simply built for today's dynamic businesses, it is the perfect choice for merchants pursuing high efficiency and aesthetics.

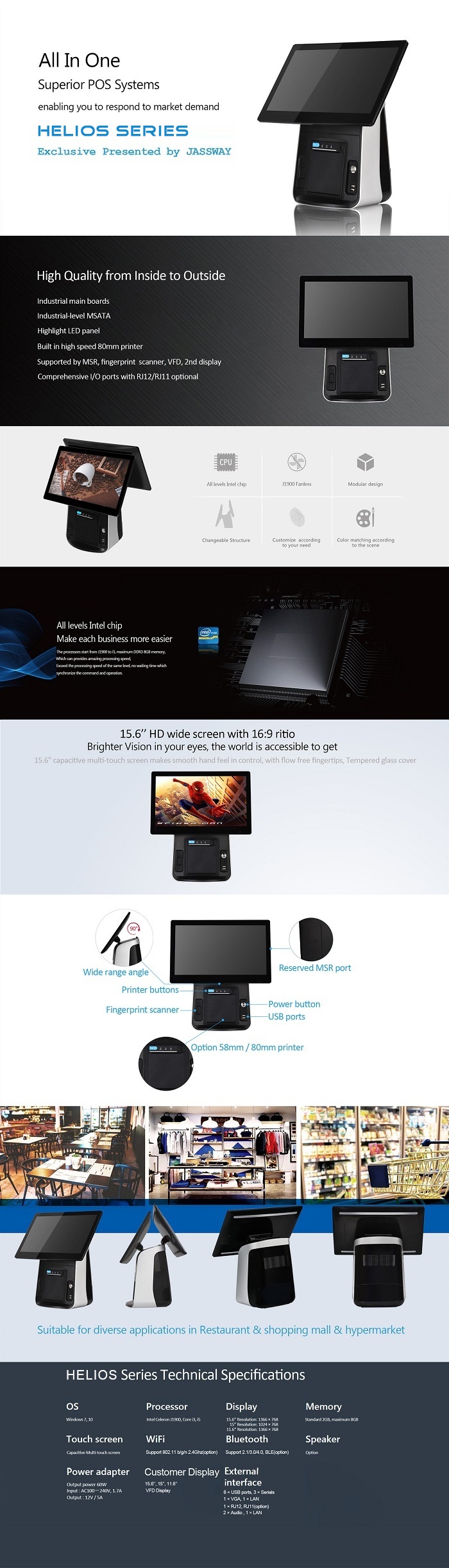

Integrated Thermal Printer
The Helios integrates a high-speed thermal printer directly into the stand, eliminating countertop clutter and providing a seamless all-in-one checkout experience. Available in 80mm or 58mm factory options.
- No external printer cables
- Fast receipt generation
- Clean, minimalist countertop footprint

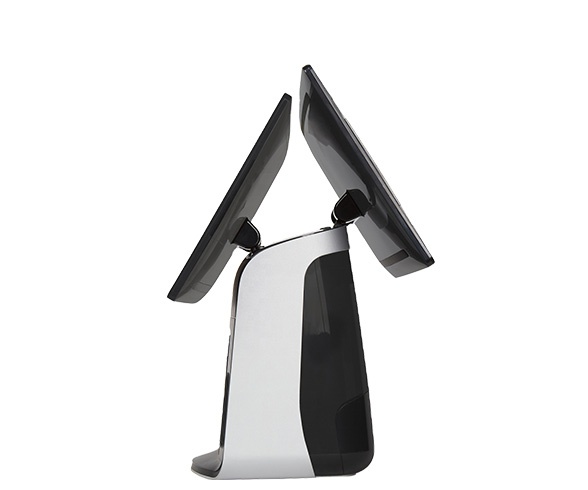

Panoramic Touch Experience
A stunning 15.6" Bezel-Free True-Flat Projective Capacitive Touch screen ensures durability and responsiveness. An optional 15.6" customer-facing display turns every transaction into a marketing opportunity.
- 15.6" Main Display (1366*768 / FHD option)
- 15.6" Customer Display option
- Water and dust resistant true-flat panel
OS
Android 11
CPU
Rockchip RK3568 / RK3399
Memory
2GB / 4GB RAM
Main Display
15.6" Bezel-Free
Technical Specifications
| Features | Details |
|---|---|
| SYSTEM | |
| Model Number | Helios POS |
| Processor | Rockchip RK3568, Quad-core Cortex A17 up to 1.8GHz Rockchip RK3399, Dual-core Cortex-A72+Quad-core Cortex-A53 up to 1.8GHz |
| Memory | DDR3 2GB / 4GB |
| Storage | 16GB / 32GB / 64GB eMMC |
| OS | Android 11 |
| DISPLAY | |
| Main Display | 15.6 inch Bezel-Free True-Flat Projective Capacitive Touch |
| Resolution | 1366*768 (1920*1080 Option) |
| Touchscreen | Capacitive Touch Screen |
| INTERFACE | |
| USB | 4*USB (maximum) |
| LAN | 1*Gigabit Ehernet, RJ45 |
| Cash Drawer | 1*RJ11 (option RJ12) |
| Power DC-IN | Input AC 100~240V/50~60hz, Output DC 12V/7.5A |
| Power Supply | Adaptor 12V, 7.5A |
| PHYSICAL & ENVIRONMENTAL | |
| Operating Temperature | Operating 0~60°, Storage -35°~75° |
| Dimensions(W×H×D) | 378×449×205 MM |
| Packing Dimensions | 485x550x335 MM |
| Color | Black/White |
| OPTIONS & PERIPHERALS | |
| Printer | 80mm / 58mm / No Printer (Factory Option) |
| 2nd Display | 15.6 inch LCD Display, Optional Touch Screen |
| Network | 802.11 a/b/g/n Wireless Protocol Bluetooth 4.0 Protocal (Factory Option) Support 4G TD-LTE, FDD-LTE (Factory Option) |
| Storage Expansion | 1*TF Slot, Support up to 64GB |
| Audio | Built-in 3W Speaker |
| Additional Options | Camera, Fingerprint, MSR (Factory Option) |
