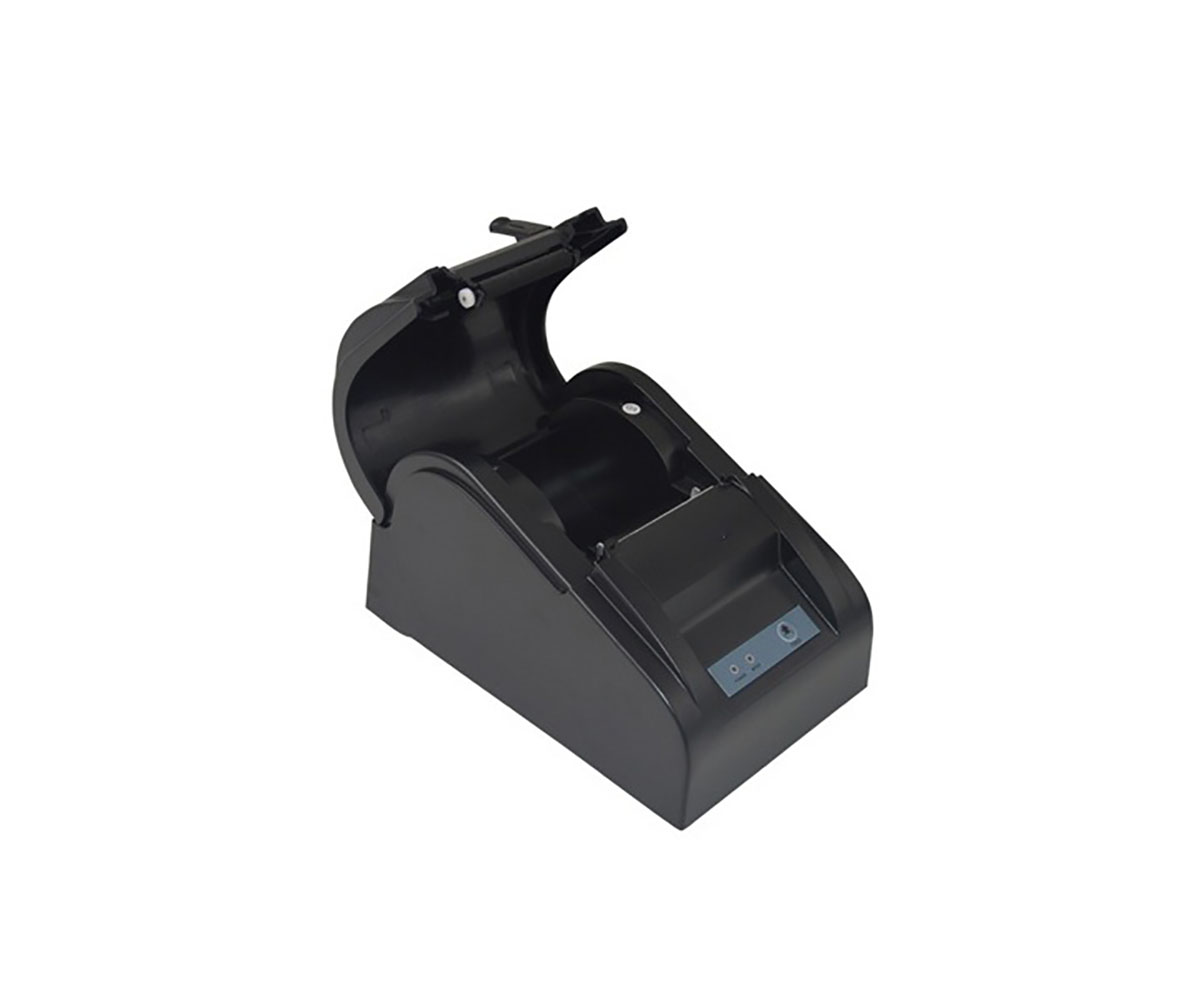

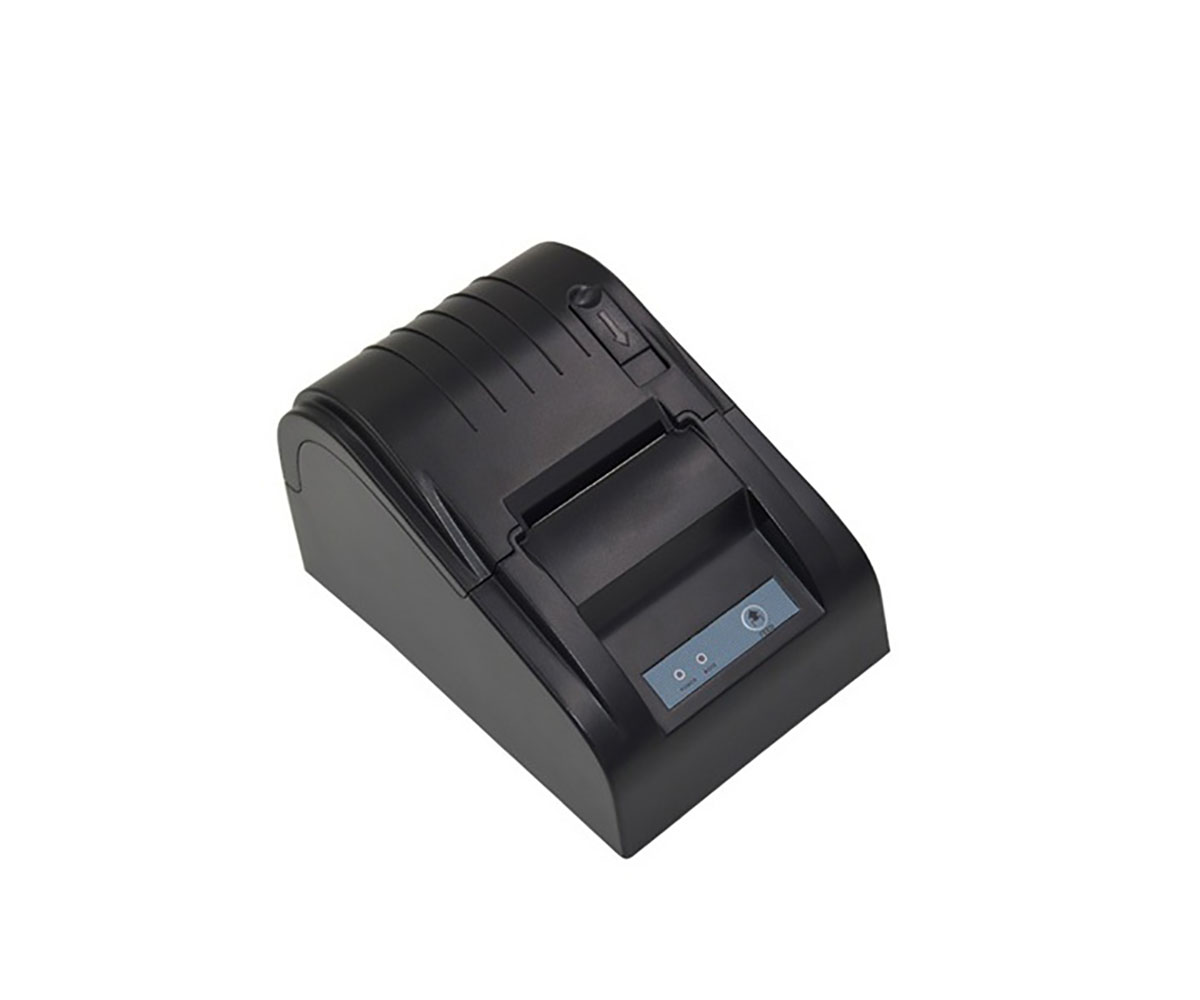

JAW-RH5890T
58mm Thermal Receipt Printer
Function introduction
- Low noise, high printing speed.
- Support the cash drawer drive.
Features
- Suitable for all kinds of commercial retail POS system, catering systems, industrial control system, etc.
- Small and portable, beautiful in appearance.
- High quality and low cost in printing.
- With reasonable structure, loading paper easily, convenient in operation and maintenance.
- Multiple interfaces optional (Parallel, Serial, USB, Bluetooth and Network Interface).
Technical Specifications
| Features | Details |
|---|---|
| Specification | |
| Model | JAW-5890T |
| Printing Method | Thermal Direct Line |
| Printing Speed | 90mm/s |
| Paper Width | 57.5±0.5mm |
| Roll Paper | 75mm |
| Paper Thickness | 0.06~0.08mm |
| Character Size | 384 dots/line ANK character; Font A: 12*24 dots, 1.5(W)*3.0(H) mm; Simplified/Traditional: 24*24 dots, 3.0(W)*3.0(H) mm |
| Print Parameters | Support to download the Logo trademark |
| Printing Chinese Character | Chinese: simplified Chinese 24x24 point, support 18030 font library, support Taiwan and HK traditional (complex font); ANK: ASCII 12 x 24 |
| Extended Character Table | Temperature: -10-60 degrees Celsius; Humidity: 20-80% |
| Power Supply | DC 12V-3A |
| Cash Box Control | DC 12V-1A |
| Reliability | Printing head life: 100km |
