JAW-260H
80mm Thermal Receipt Printer
Function introduction
- 80MM thermal printer.
- Bluetooth can be optional.
- Compatible ESC/POS programming language.

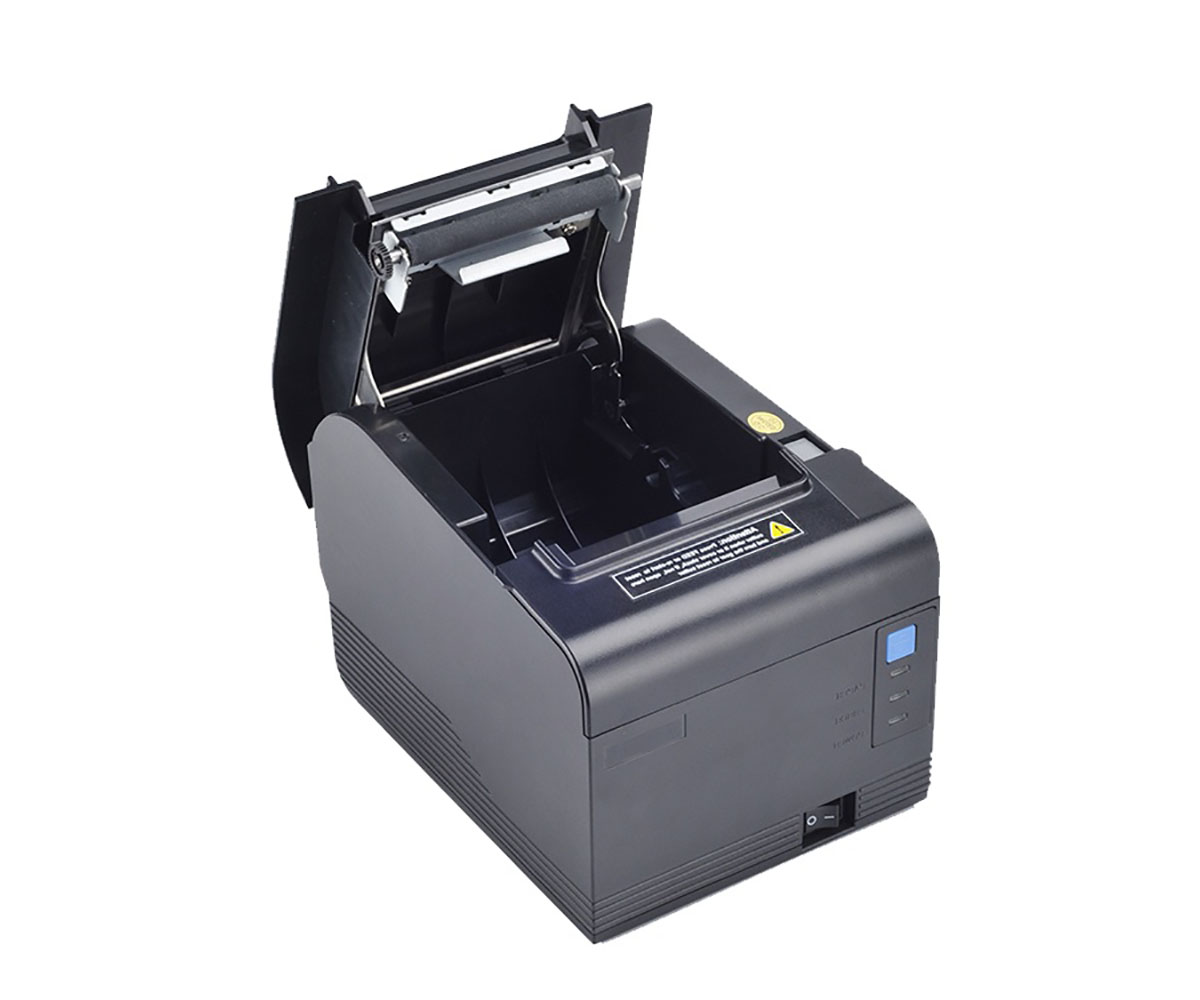

- Open access for easy paper loading.
- Media cover open sensor.
- Change IP through Web or Serial port.
Features
- 80MM thermal printer.
- Bluetooth can be optional.
- Compatible ESC/POS programming language.
- Open access for easy paper loading.
- Media cover open sensor.
- Change IP through Web or Serial port.
Technical Specifications
| Features | Details |
|---|---|
| Printing | |
| Printing Method | Direct Thermal |
| Printing Speed | 260mm/s |
| Paper Width | 79.5±0.5mm |
| Print Width | 72mm |
| Paper Thickness | 0.06~0.08mm |
| Column Capacity | 576 dots/line 512 dots/line (80mm) |
| Line Space | Space 3.75mm (changeable using commands) |
| Interfaces | USB+Serial / USB+Lan |
| Barcode Character | |
| Barcode | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODABAR/ITF/CODE39/CODE93/CODE128 QR CODE / PDF417 |
| Code Page | PC347 (Standard Europe), Katakana, PC850 (Multilingual), PC860 (Portuguese), PC863 (Canadian-French), PC865 (Nordic), West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866 (Cyrillic#2), PC852 (Latin2), PC858, IranII, Latvian, Arabic, PT151 (1251) |
| Power | |
| Power Supply | AC100~240V, DC 24V / 2.5A |
| Physical & Environment | |
| Color | Black |
| Dimensions (W x H x D) | 185 x 145 x 137 (MM) |
| Packing Dimensions (W x H x D) | 690 x 340 x 440 (MM) |
| Net Weight | 1.1KG |
| Packing Weight | 19.5KG for 6 PCS |
| Temperature | Operating Temp: 5°C ~ +45°C Storage Temp: -40°C ~ +55°C |
| Humidity | Operating Humidity: 20%~80%, Storage Humidity: <93% (40°C) |
| Reliability | |
| Cutter Life | 1.5 million cuts |
| Printer Head Life | 150KM |
| Software | |
| Emulation | ESC/POS |
| Driver | Windows/JPOS/Linux/Android/Mac |
| Utility | Windows & Linux test Utility |
| SDK | IOS/Android/Windows |
