ATH156A
15.6 inch Waterproof Stainless Steel Kitchen Display System
Function introduction
Designed to handle the harsh environment of a restaurant Kitchen, the athena can dramatically improve sustainable Kitchen operations.

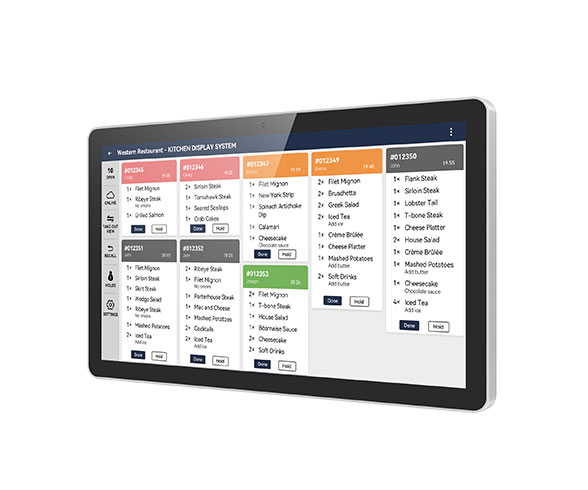

Waterproof Stainless Steel Kitchen Display System
Commercial Grade PCAP Touch Screen
The PCAP capacitive touchscreen offers ample display space for full customization of layouts and functions. Reduce unnecessary touches, cut ticket times, and keep your kitchen running smoothly.
Power Over Ethernet (POE+)
Power over Ethernet (PoE) eliminates the need for dedicated power outlets, adapters, and complex cabling at every station. Fewer failure points mean easier troubleshooting, simpler maintenance, and hassle-free support.

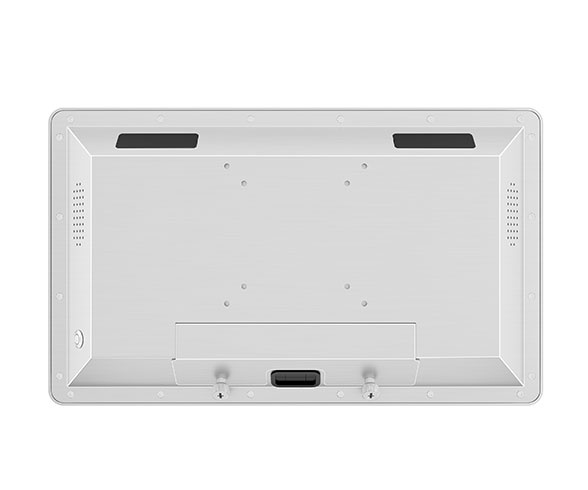

Unlock More Possibilities With A Vesa Mount
Athena can be mounted with a VESA mount, enabling more applicable scenarios. For example, it can be used as a kitchen display of a KDS, greatly improving the restaurant operational efficiency.
OS
Android 14
CPU
RK3576S Octa-core
Memory
4GB RAM + 64GB ROM
Main Display
15.6" LED Backlight
Wifi
Wi-Fi 6
Bluetooth
Bluetooth 5.4
Speaker
2*3W Speaker
Waterproof
Front IP65, Back IP54
Technical Specifications
| Features | Details |
|---|---|
| MODEL | |
| Model Number | ATH156A |
| SYSTEM | |
| Processor | RK3576S Quad core cortex A72 + Quad core cortex A53 |
| GPU | ARM Mali G52 MC3 |
| NPU | 3 TOPS |
| Memory | 4GB |
| Storage | 32GB |
| OS | Android 14 |
| DISPLAY | |
| Type | 15.6-inch LED Backlight Display |
| Resolution | 1920*1080 |
| Aspect Ratio | 16:9 |
| Color gamut | 45% NTSC |
| Viewing angle | R/L 85/85, U/D 85/85 |
| Contrast ratio | 1000:1 |
| Luminance | 400 nits |
| Touchscreen | Projective Capacitive Touch Screen |

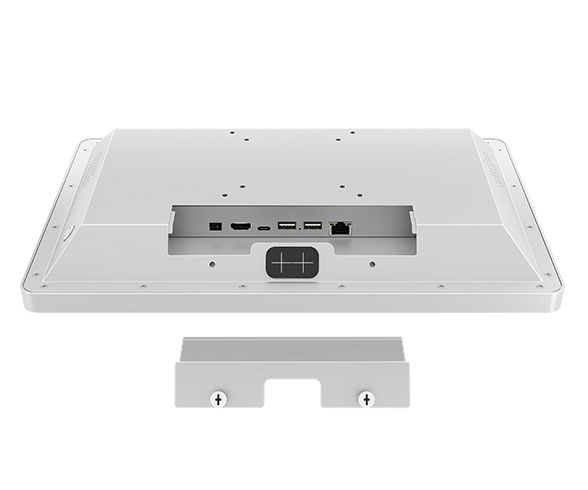

| INTERFACE | |
| DISPLAY | 1*HDMI 2.0 |
| USB | 1*USB3.0, 1*USB2.0 |
| LAN | 1*RJ45 10/100/1000M Ethernet |
| Type-C | 1*Type-C (Only supports OTG function) |
| Power DC-IN | DC 12V/2A |
| PHYSICAL & ENVIRONMENTAL | |
| Operating Temperature | Operating 0~40° at 20% to 80% Humidity |
| Storage Temperature | Storage -20°~60° at 10% to 95% Humidity |
| Dimensions(WHD) | 343.56x228x47.2 MM |
| Packing Dimensions | 437x127x309 MM |
| Net Weight | 2.92KG |
| Material | Stainless steel / Sheet metal |
| Color | Matte Black / Silver |
| OPTIONS & PERIPHERALS | |
| Wifi | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Bluetooth | Bluetooth 5.4 |
| prod_spec_speaker | 2*3W Speaker |
| Camera | 8.0MP |
| POE | IEEE STD 802.3BT |
| Waterproof rating | Front IP65, Back IP54 |
| Wall Mount | VESA 75*75MM / 100*100MM Bracket |
