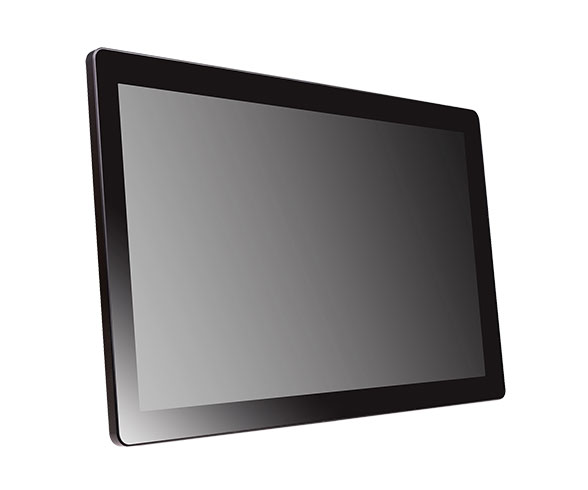

ALTAS KDS
21.5inch Alumunium Kitchen Display Terminal, Weaterproof optional
Function introduction
- 21.5 inch TFT LED Backlight, with 1920*1080
- Port for MSR Easy installation
- IP65-rated front weatherproof structure
- Whole metal plate heat dissipation design
- 75*75 VESA Mount
Professional KDS Hardware
Simplify communication between servers and kitchen staff. Your servers ring up orders in Jassway Altas Kitchen Display Hardware immediately brings them right in front of your kitchen staff eyes, no time wasted.
Improved POS Technology Yields Improved Order Efficiency
Our team of advanced system designers have created the world's most modern interpretation of a functional touchscreen-based kitchen management system hardware, helping you achieve unprecedented levels of kitchen productivity. In the design of the product, the whole heat sink is designed on the back plate through bold ideas, and it can also be sealed by custom silica gel to achieve the waterproof level of the whole machine, which is used in a more demanding kitchen environment.
Features
- IP65-rated front weatherproof structure.
- Whole metal plate heat dissipation design.
- 21.5inch Touch Screen.
- Multiple I/O Ports.
- 75*75 VESA Mount.
OS
Windows 10 / Linux
CPU
Intel Celeron / Core i3/i5
Memory
Up to 32GB RAM
Main Display
21.5" TFT LED Backlight
Touch
Projective Capacitive
Wifi
Mini PCIe Wireless (Option)
Design
Aluminum Frame
Audio
Built-in 3W Speaker
Technical Specifications
| Features | Details |
|---|---|
| SYSTEM | |
| Processor | Intel Celeron J1800 Dual-Core, Up to 2.58Ghz Intel Celeron J1900 Quad-Core, Up to 2.42Ghz Intel Celeron J3455 Quad-Core, Up to 2.3Ghz Intel Core i3/i5 3rd, 4th, 5th, 6th, 7th, 8th High Performance CPU |
| Memory | 4GB Standard, DDR3L or DDR4, up to 8GB/16GB/32GB |
| Storage | 64GB standard, up to 512GB |
| OS | Windows 7, Windows 8.1, Windows 10, POS Ready7, Linux |
| DISPLAY | |
| Type | 21.5 inch TFT LED Backlight |
| Resolution | 1920*1080 (1080p Full HD) |
| Aspect Ratio | 16:9 |
| Brightness | 250 nits |
| Touchscreen | Projective Capacitive Touch Screen / Non Touch Display |
| INTERFACE | |
| DISPLAY | 1*VGA or 1*VGA+1*HDMI |
| USB | 3*USB2.0, 1*USB3.0 |
| LAN | 1*RJ45 |
| Serial | 2*COM |
| Audio | 1*Mic-in, 1*Line-out |
| Power DC-IN | Input AC 100~240V/50~60hz, Output DC12V/7.5A |
| PHYSICAL & ENVIRONMENTAL | |
| Operating Temperature | Operating 0~60° |
| Storage Temperature | Storage -35°~75° |
| Cooling | Fanless or with CPU Fan |
| Dimensions(WHD) | 535x325x70(MM) |
| Packing Dimensions(WHD) | 620*440*230(MM) With Wooden Box |
| Net Weight | 6.5KG |
| Packing Weight | 11.5KG With Wooden Box |
| Color | Black |
| prod_sys_certification | CE, FCC, RoHS |
| OPTIONS & PERIPHERALS | |
| Wifi | Mini PCIe for Wireless LAN (Option) |
| Bluetooth | Bluetooth 4.0 protocol (Option) |
| prod_spec_speaker | Built-in 3W speaker |
| Wall Mount | VESA 75*75mm |
